What Is the Blackmagic ATEM Mini?
The Blackmagic ATEM Mini is a compact live production switcher that lets you switch between up to four HDMI video sources in real time. Originally designed for broadcast television control rooms, the ATEM Mini brought professional live switching to content creators, streamers, podcasters, and educators at a price point that was previously unthinkable. It connects directly to your computer via USB-C as a webcam, making it instantly compatible with Zoom, OBS, YouTube Live, and virtually every streaming platform.
At approximately R5,500–R7,000 in South Africa for the base model, the ATEM Mini transforms a multi-camera setup from a complex post-production challenge into a real-time production workflow. Instead of recording multiple camera angles and syncing them in editing software, you switch between cameras live — cutting your production time dramatically and enabling live streaming with broadcast-quality switching.
ATEM Mini Models Compared
Blackmagic offers four versions of the ATEM Mini, each adding features for more demanding productions:
ATEM Mini (Base Model)

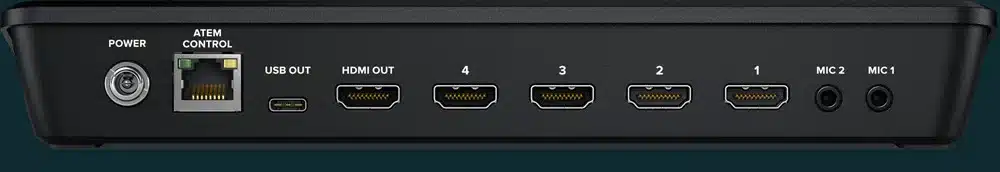

Four HDMI inputs, USB-C webcam output, two 3.5mm mic inputs, built-in audio mixer, picture-in-picture, upstream and downstream keyers. This model covers the needs of most content creators, podcasters, and small streamers. It outputs up to 1080p60 via USB-C to your computer.

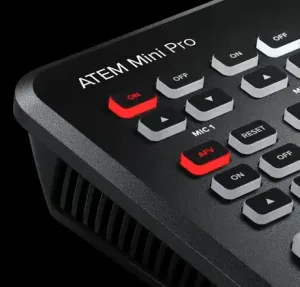

ATEM Mini Pro
Adds direct streaming via Ethernet (no computer needed for streaming), recording to USB storage, multiview monitoring (all sources on one screen), and a front panel LCD. The Pro model is ideal for creators who want to stream directly to YouTube or Twitch without routing through a computer, and the recording function captures your switched program output for later use.
ATEM Mini Pro ISO
Records all four inputs simultaneously as individual ISO files plus the program output, along with a DaVinci Resolve project file for post-production re-editing. This is invaluable for productions where you want to refine your switching decisions after the live event — conferences, interviews, and performances where a missed cut can be fixed in post.
ATEM Mini Extreme ISO
Eight HDMI inputs, two separate USB-C webcam outputs, four upstream keyers, two downstream keyers, SuperSource (picture-in-picture on steroids), 16 independent recording streams, and headphone monitoring. Designed for larger productions, houses of worship, and professional events. At R28,000–R35,000, it competes with switchers costing five to ten times more.
Key Features for Content Creators
Multi-Camera Production Made Simple

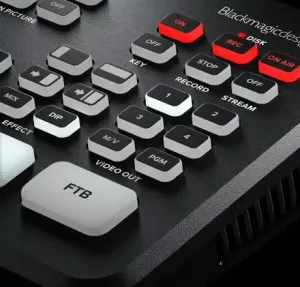

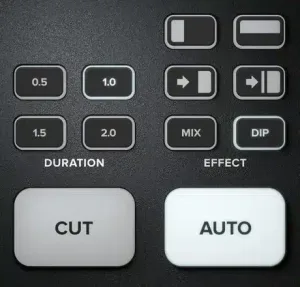

The ATEM Mini’s primary value is turning multi-camera production from an editing nightmare into a straightforward live workflow. Connect up to four cameras via HDMI, press the numbered buttons on the ATEM Mini to switch between them, and the switched output feeds directly to your computer as a webcam signal or to a streaming platform.
A typical podcast setup uses three cameras: one wide shot, one on each host. During recording, you press buttons 1, 2, or 3 to switch between angles in real time. The result is a fully edited multi-camera show that requires zero post-production editing for camera switching. This workflow saves hours per episode for podcasters who previously recorded single-camera and added cutaways in post.
Built-In Audio Mixer
The ATEM Mini includes a Fairlight audio mixer accessible through the ATEM Software Control application on your computer. Each of the four HDMI inputs plus the two 3.5mm microphone inputs has independent level controls, EQ, dynamics (compressor, gate, limiter), and delay adjustment. This eliminates the need for a separate audio interface or mixer in simple productions.
The mic inputs accept standard 3.5mm connections — ideal for lavalier microphones and consumer-grade mics. For professional XLR microphones, you will need an XLR-to-3.5mm adapter or a separate audio interface feeding into one of the HDMI inputs via a camera or converter.
Upstream and Downstream Keyers
The upstream keyer enables chroma keying (green screen removal), luma keying, and pattern keying — perfect for overlaying a presenter over slides, gameplay, or virtual backgrounds. The chroma keyer quality is impressive for the price point, handling solid-colour green screens cleanly with adjustable spill suppression and edge softening.
The downstream keyer adds graphics overlays — lower thirds, logos, watermarks, and score bugs — on top of your switched program output. Load graphics through the ATEM Software Control media pool and trigger them with a button press during live production. This feature is essential for branded live streams and professional-looking broadcasts.
Setting Up a Multi-Camera Studio
Camera Selection
Any camera with HDMI output works with the ATEM Mini. Popular choices for multi-camera setups include the Canon EOS R, Sony ZV-E10, Panasonic Lumix G series, and even smartphones with HDMI adapters. The ATEM Mini automatically converts all inputs to match your selected output format, so you can mix cameras with different resolutions and frame rates without issues.
For the best results, use cameras that output clean HDMI (no overlays, menus, or focus boxes). Most mirrorless cameras offer a clean HDMI mode in their settings. Camera bodies dedicated to studio use should be plugged into continuous power via dummy batteries to avoid mid-stream battery failures.
Cable Management
HDMI cables are the ATEM Mini’s biggest practical challenge. HDMI connections are not locking, meaning they can be pulled out accidentally. Use cable ties or HDMI cable locks to secure connections. For runs longer than 5 metres, use active HDMI cables or HDMI-over-Ethernet extenders to avoid signal degradation. Keep all HDMI cables away from power cables to prevent interference.
Monitoring
The ATEM Mini base model has a single HDMI output for monitoring. Connect this to a TV or monitor to see your program output. The ATEM Mini Pro and above add multiview — displaying all four inputs plus program and preview on a single monitor, giving you a professional control room view from one screen.
Live Streaming With the ATEM Mini
The base ATEM Mini streams via USB-C webcam output through streaming software (OBS, Streamlabs, Ecamm Live) on your computer. The ATEM Mini Pro and above can stream directly via Ethernet without a computer — enter your streaming key in the ATEM Software Control, connect an Ethernet cable, and you are live on YouTube, Twitch, Facebook Live, or any RTMP-compatible platform.
Direct streaming from the ATEM Mini Pro has a significant advantage: it bypasses your computer entirely, eliminating software crashes, CPU overload, and the need for a powerful streaming PC. The stream quality maxes out at 1080p60 with adjustable bitrate — sufficient for all major platforms. For 4K streaming, you will need to pair the ATEM Mini with a separate hardware encoder.
Who Should Buy the ATEM Mini?
- Podcasters: Multi-camera podcast production with zero editing for camera switching
- YouTube creators: Tutorial and review channels that benefit from switching between face camera, overhead camera, and screen capture
- Live streamers: Gaming, music, and talk show streamers wanting broadcast-quality production
- Churches and events: Multi-camera live streaming of services, conferences, and performances
- Educators: Switching between presenter, whiteboard, and screen share for online lessons
- Corporate: Professional-quality virtual meetings, town halls, and webinars
Frequently Asked Questions
Can the ATEM Mini record video without a computer?
The base ATEM Mini cannot record independently — it outputs video via USB-C to a computer for recording or streaming. The ATEM Mini Pro and above can record directly to USB-C external drives (formatted as ExFAT or HFS+), capturing your switched program output without needing a computer connected.
Does the ATEM Mini support 4K input?
The ATEM Mini accepts HDMI signals up to 1080p60. It does not support 4K input or output. If you connect a 4K camera, set its HDMI output to 1080p in the camera’s settings. For 4K production switching, you need the Blackmagic ATEM Television Studio 4K or higher-end models.
Can I use the ATEM Mini with OBS and Zoom simultaneously?
The USB-C webcam output can be used by one application at a time on most operating systems. To use it with both OBS and Zoom simultaneously, use virtual camera software (like OBS VirtualCam) to route the OBS output to Zoom. Alternatively, the ATEM Mini Extreme ISO offers two independent USB-C outputs for this exact use case.
What is the difference between the ATEM Mini Pro and Pro ISO?
The Pro ISO records all four camera inputs as individual files plus the program output and generates a DaVinci Resolve project file. The standard Pro only records the program output. Choose the Pro ISO if you want the ability to re-edit your camera switching in post-production — essential for events, interviews, and any production where perfection matters.
How much does a complete ATEM Mini multi-camera setup cost in South Africa?
A basic two-camera setup costs approximately R15,000–R25,000: ATEM Mini (R5,500–R7,000), two cameras with HDMI output (R4,000–R8,000 each using used Canon M50s or similar), two microphones (R500–R1,500 each), HDMI cables (R200–R400 each), and a monitor (R2,000–R4,000). A professional four-camera setup with the ATEM Mini Pro ISO ranges from R40,000–R80,000 depending on camera and microphone choices.
